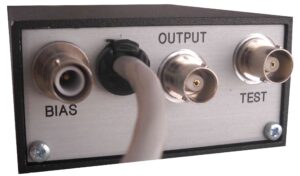

The preamplifier CB200A is a low noise charge sensitive preamplifier. CB200A series has four fixed gain values. The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 3KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit. Different number of amplifiers can be housed in different boxes. There are 2 type of boxes (see below).
The preamplifier CB200B is a low noise charge sensitive preamplifier. Fast timing and small size make this preamplifier excellent module for small charged particle detectors or laboratory measurements. The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 3KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
The preamplifier CB200C is a low noise charge sensitive preamplifier. Fast timing and small size make this preamplifier excellent module for small charged particle detectors or laboratory measurements. The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 3KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
The preamplifier CB200C1 is low noise charge sensitive preamplifier. CB200C1 series has adjustable gain values. The preamplifier is optimized for high input capacitance (up to 1000pF).
The module has bias input (up to 3KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
C200C1 module has only ±12 Volt power supply voltage.
The preamplifier CB200A is low noise charge sensitive preamplifier. CB200A series has four fixed gain values. The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 3KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
In module C200C4 are housed four PCB boards of CB200 preamplifier that has only ±12 Volt power supply voltage.
The preamplifier CB200PC is a low noise charge sensitive preamplifier with very high gain 6 V/pC. Fast timing and small size make this preamplifier excellent for charged particle detectors or laboratory measurements.
The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 3KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
The preamplifier CB202A is fast charge sensitive preamplifier specially studied from gas based detectors. The rise time is less 7 ns with 50 Ω termination. The module has bias input SHV connector (up to 3 KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit. The module has only ± 12 Volt alimentation.
The preamplifier CB210 is a low noise charge sensitive preamplifier designed for PMTs. Low gain 10, 20, 30 mV/pC and Z=50 Ω impedance make it an excellent module for PMTs. The preamplifier is optimized for high input capacitance (up to 5000pF) and impedance of dividers. The module has protection circuit to avoid breakdown of the input of the preamplifier circuit.
The preamplifier CB211 is a low noise charge sensitive preamplifier designed for PMTs. Low gain 166mV/pC and Z=50 Ω impedance make it an excellent module for PMTs. The preamplifier is optimized for high input capacitance (up to 1000pF)and impedance of dividers. The module has bias input (up to 3 KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
The preamplifier CB215A is a low noise charge sensitive preamplifier. CB215A series has four fixed gain values. The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 5KV) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
The preamplifier CB200A_J is a low noise charge sensitive preamplifier. CB200A series has fixed gain values and can be changed by jumpers inside the box. The preamplifier is optimized for high input capacitance (up to 1000pF). The module has bias input (up to 3 or 5KV, specified in order) and protection circuit to avoid breakdown of the input of the preamplifier circuit.
Different number of amplifier can be housed in different boxes. There are 2 type of boxes (see below).
