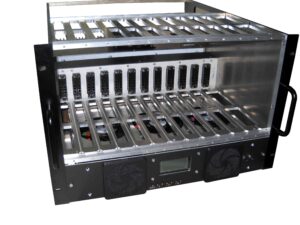

The NAICAM Mod. NC305 is a 7U ventilated NIM crate. This 19 inch module has 12 slot crate and available with or without pluggable 300W (optional version 450W) power supply. The Unit can be powered by 110 or 230 VAC, 50-60 Hz. The Mod NC305 is equipped with a simple FAN. On control panel of FAN unit housed LCD display and test pin for all DC voltages.
The NAICAM Mod. NC305_TID is a 7U ventilated NIM crate. The module NSP300W_TID is compatible with any a plug-in power supply with TID20893 standard NIM pinout. This 19 inch module has 12 slot crate and available with or without pluggable 300W(optional version 450W) power supply. The Unit can be powered by 110 or 230 VAC, 50-60 Hz. The Mod NC305 is equipped with a simple FAN. On control panel of FAN unit housed LCD display and test pin for all DC voltages

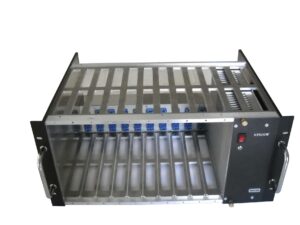

The NAICAM Mod. NCM150W is a 5U non ventilated NIM crate . This 19 inch module has 10 slot crate as specified by DOE/ER-0457T standard and available with pluggable power supply module NPS150W. The Unit can be powered by 110 or 220 VAC, 50-60 Hz. The Module NPS150W is equipped with a simple FAN.

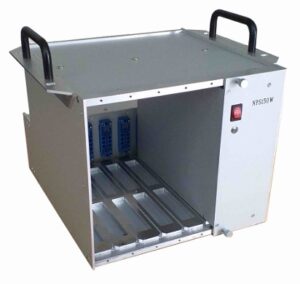

The NAICAM Mod. NCM150_6S is a 5U ventilated NIM crate. This 220 mm width module has 6 slots as specified by DOE/ER-0457T standard and available with 150W plug in power supply. The power unit can be powered by 110 or 220 VAC, 50-60 Hz and specified before shipping.
